Products description
Properties
- Universal heavy-duty fixing set without expansion pressure
- Approved by building authorities for use in conjunction with Liquix Pro 1 and Plus 7 injection mortars for concrete and perforated brick work
- Made of A4 stainless steel
Description and field of application
- Ideal complement to Liquix injection mortar
- Made of stainless steel, with hexagonal nut, washer and perforated sleeve 20 x 85 mm
Processing and assembly
- Anchor rod made of A4 stainless steel
- May be used in dry interiors, damp areas and exteriors including in industrial atmospheres and near the sea
- Use perforated sleeve in perforated brick
- Pre-positioned installation
Building materials
- Concrete C 20/25 cracked & non-cracked
- hollow brick
- lime sand perforated brick
- Hbl lightweight concrete
- Hbn Concrete
- Lime sand solid brick
- bricks

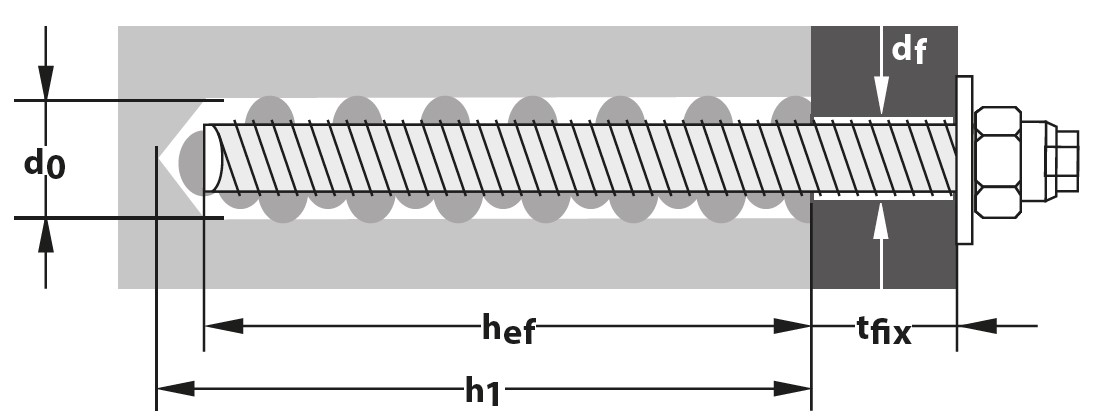

Technical data:
| Dowel diameter | M12 | [mm] | |
| Dowel length | 115 | [mm] | |
| Screw size | - | [ø mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 14 | [mm] |
| Min. drill hole depth | h1 | - | [mm] |
| Min. bolt penetration | hef | - | [mm] |
This Product was added to our catalogue on 22/06/2023.
