Products description
Properties
- Automatic toggle wall plug
- With open round hook
- For bridging large wall thicknesses
- For single and double sheet wall boards
- Self-expanding
Description and field of application

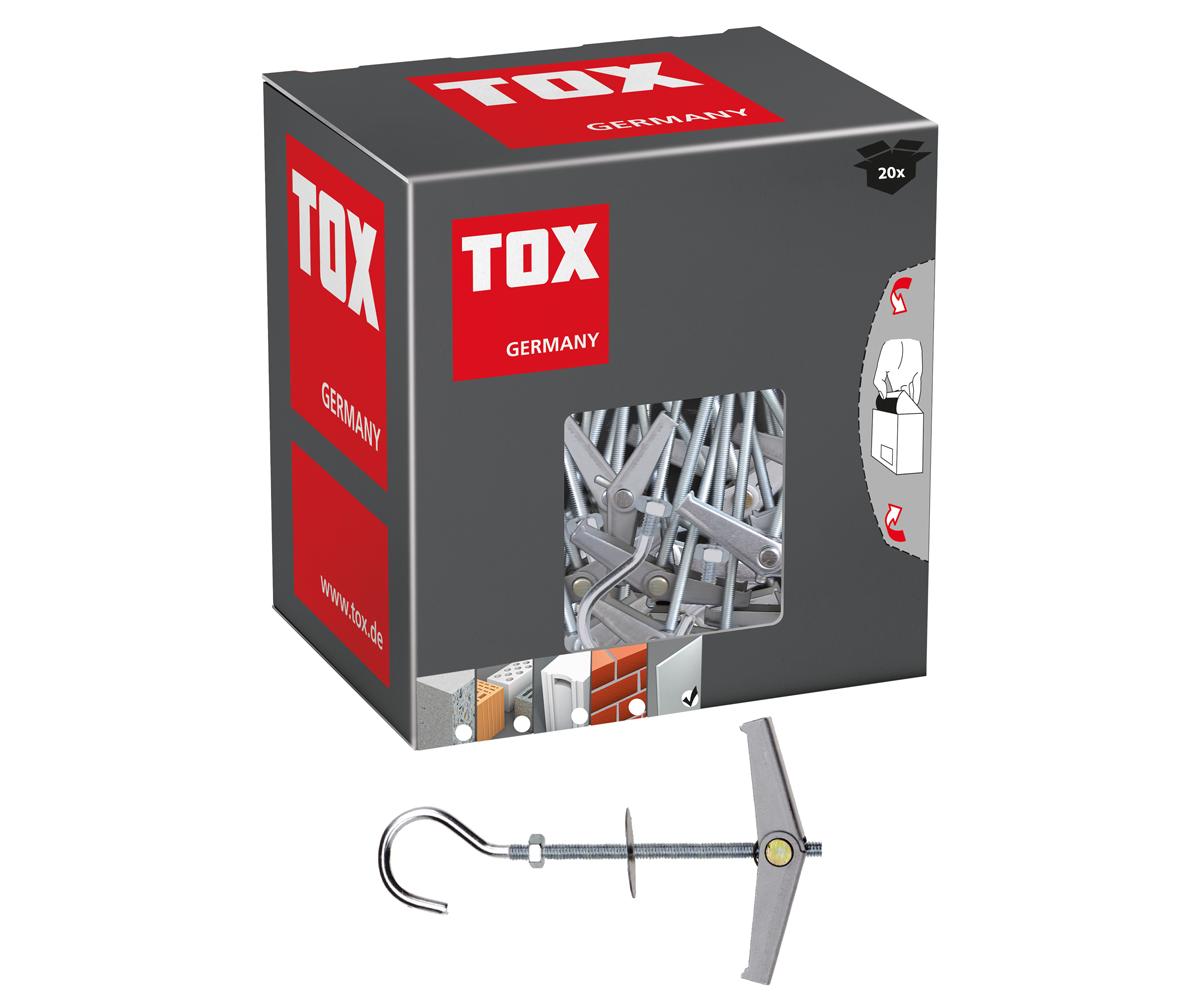

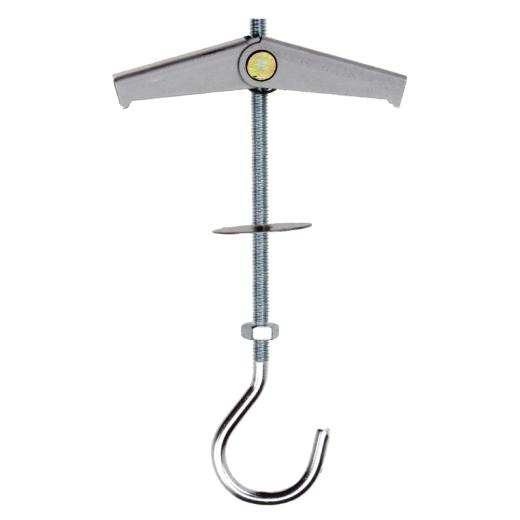

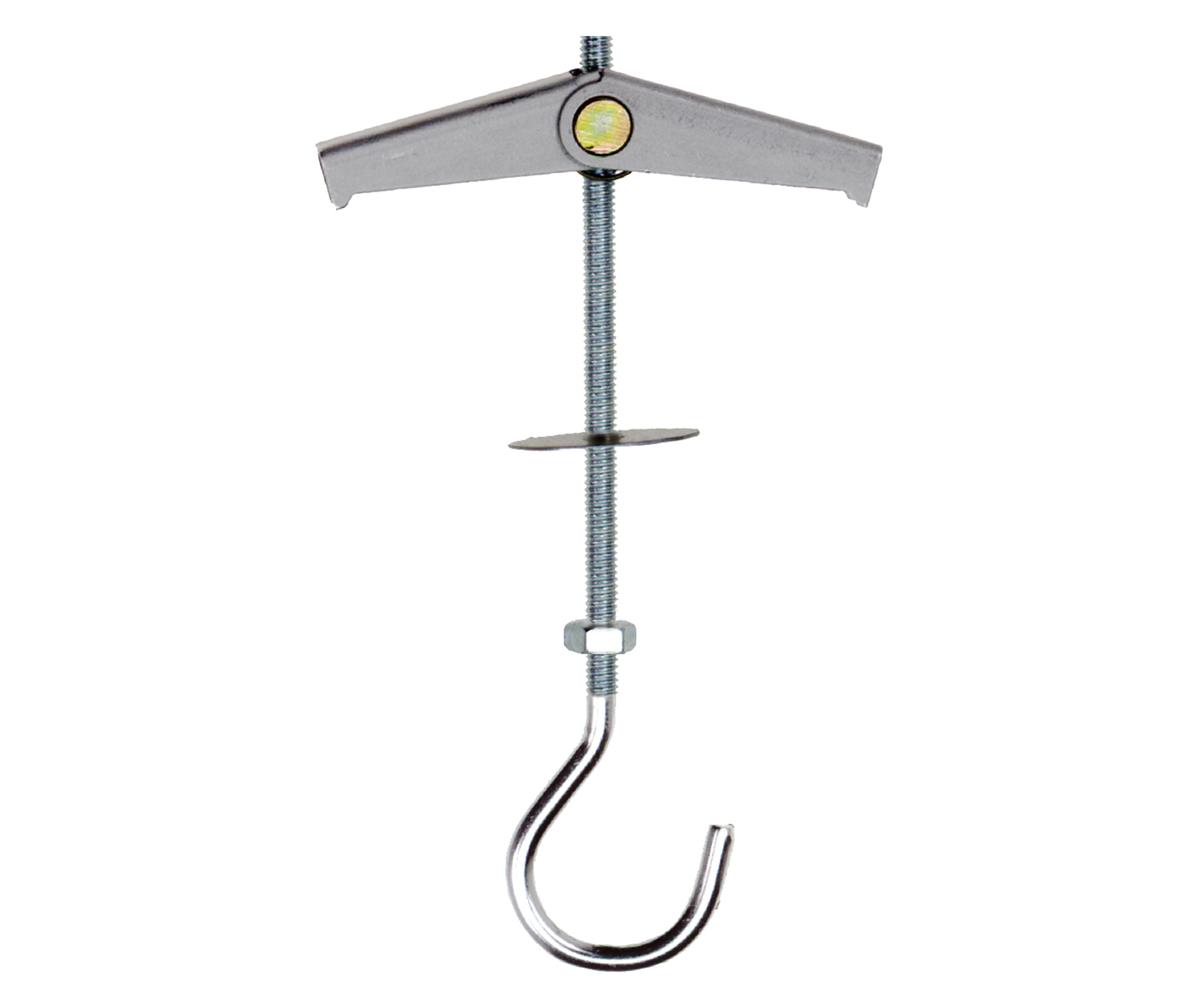

- Galvanised metal cavity toggle with two folding wings, metric thread hook, metal washer and hexagon nut

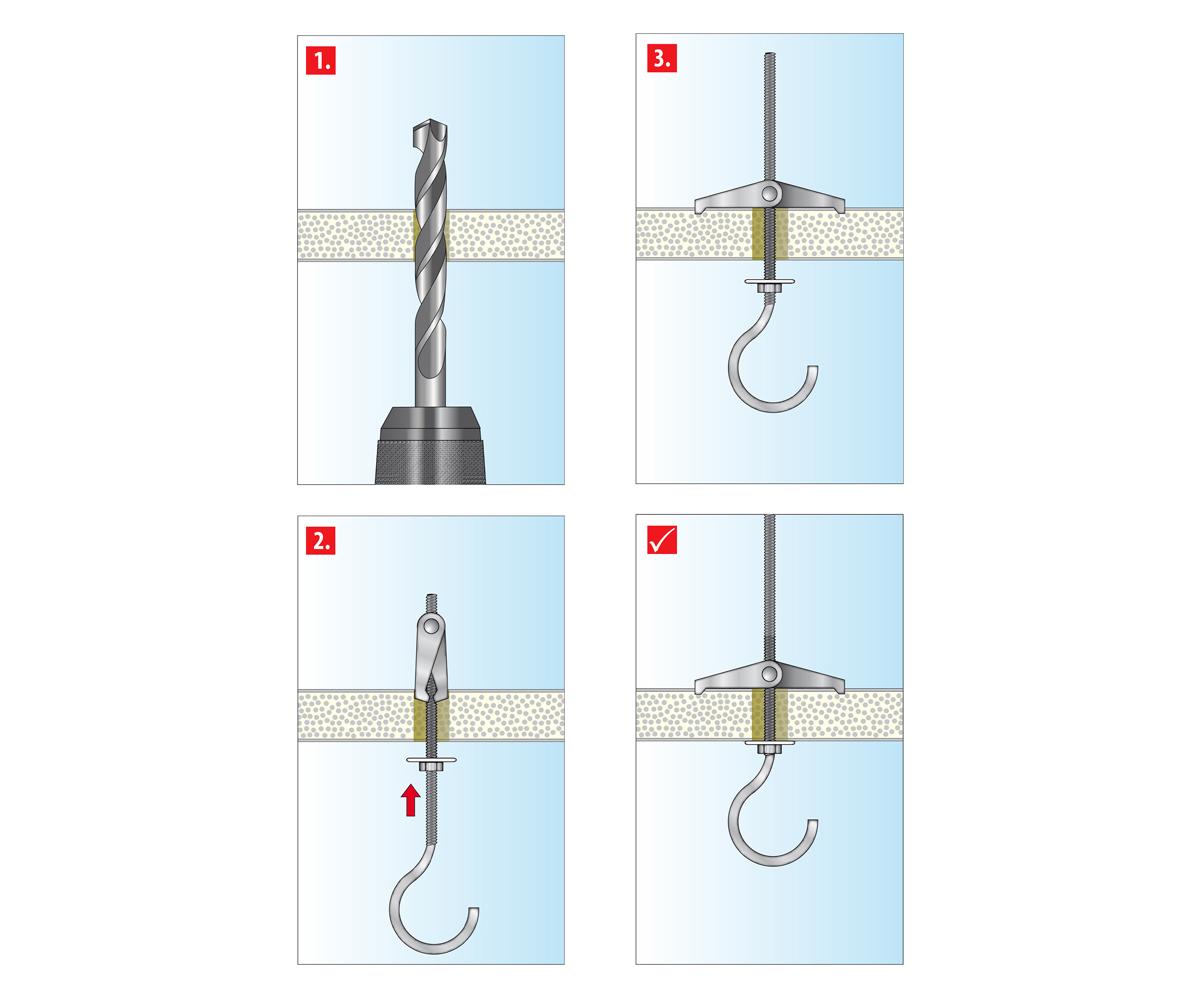

Processing and assembly
- Observe the minimum cavity depth, board thickness and drill Ø (see table on the left)
- Observe the vertical installation position for wall installations
- Pre-positioned installation
Technical data:
| Dowel diameter | M3 | [mm] | |
| Dowel length | [mm] | ||
| Screw size | - | [ø mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 12 | [mm] |
| Min. drill hole depth | h1 | - | [mm] |
| Min. bolt penetration | hef | - | [mm] |
This Product was added to our catalogue on 16/06/2023.
