Products description

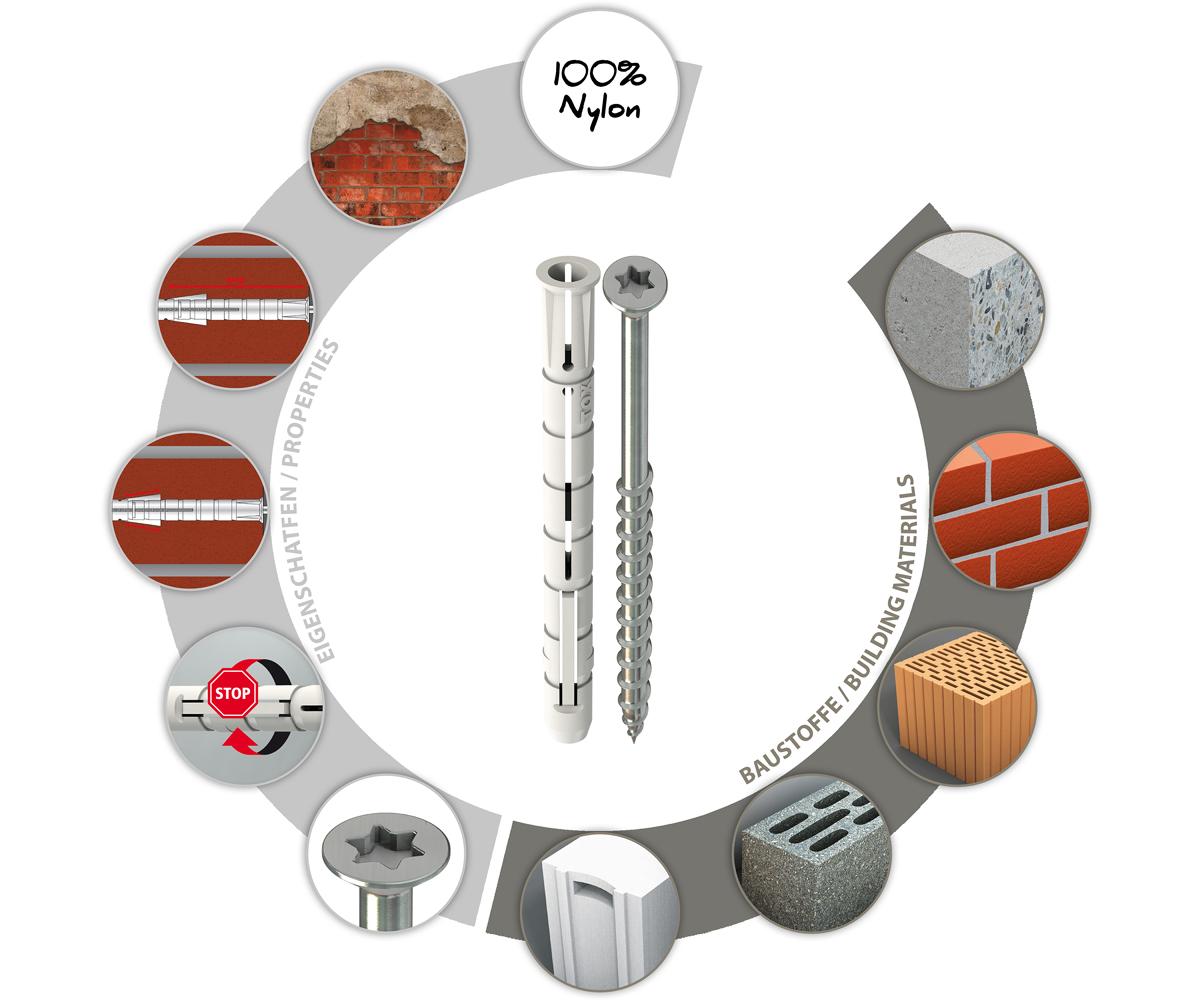

Properties
- Ideal for friable and porous building materials
- All-purpose properties: holds secure even in mixed brickwork, which is common in old buildings
- Expands in different directions and thus guarantees safe anchoring and high load-bearing values
- Extra deep seat in the brickwork
- Extending rotors prevent rotation in the drill hole
- 100% Nylon

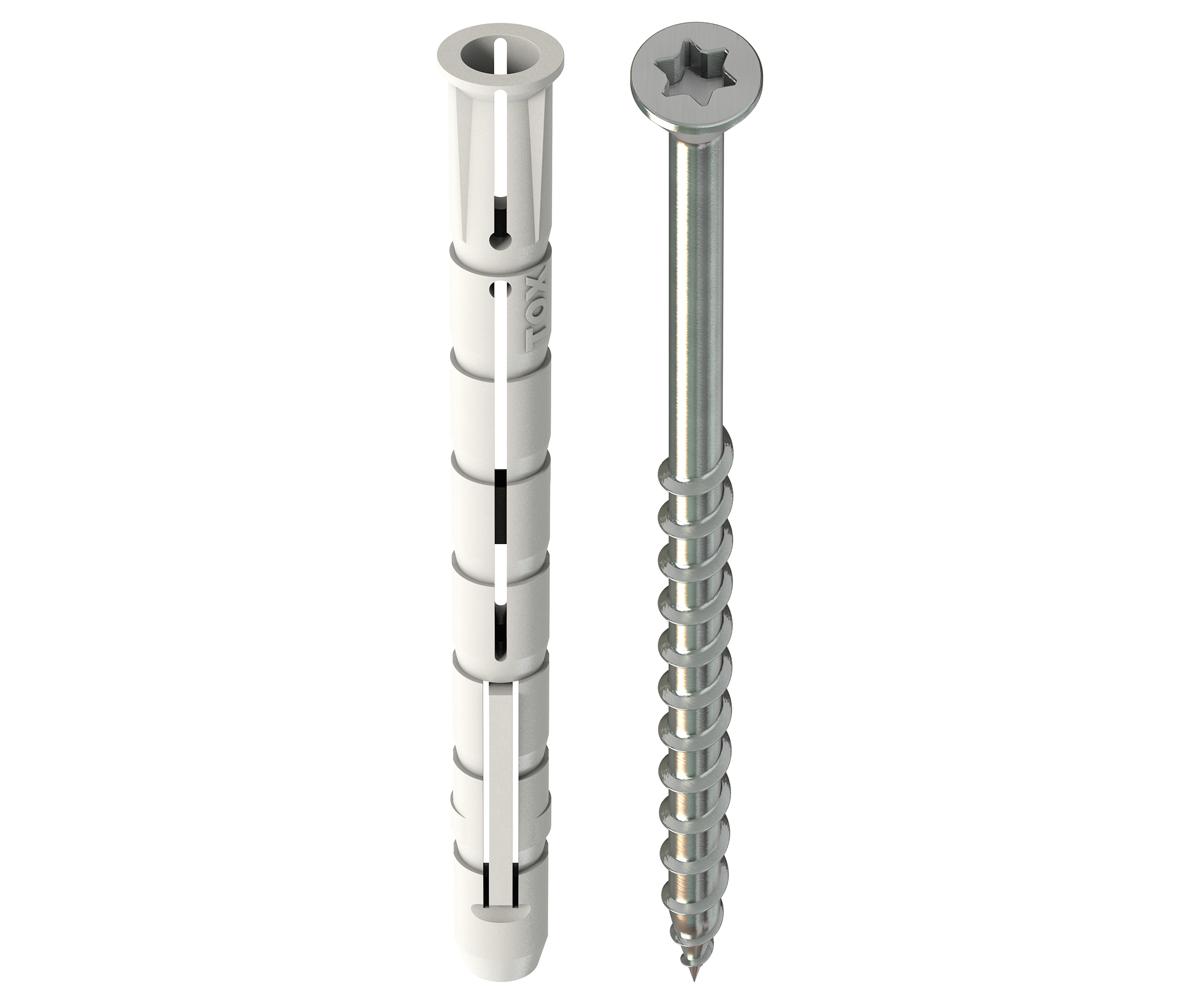

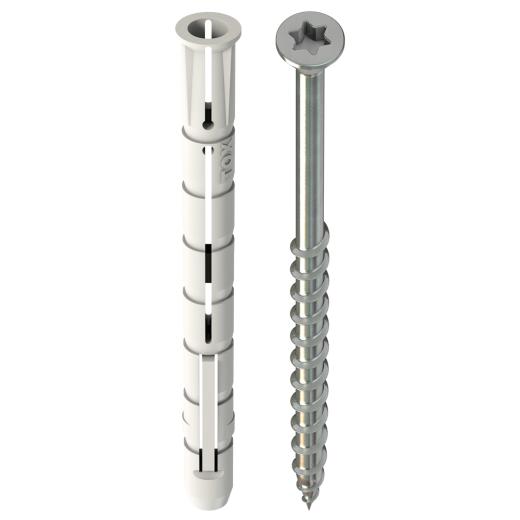

- Altbaujoker + screw: a perfectly tuned system
- Multiple expansion by 2-part expansion elements which are offset by 90°
- Moving rotors
- Flexible wall plug neck
- Deep anchoring depth
- Altbaujoker + screw: Screw with TX drive

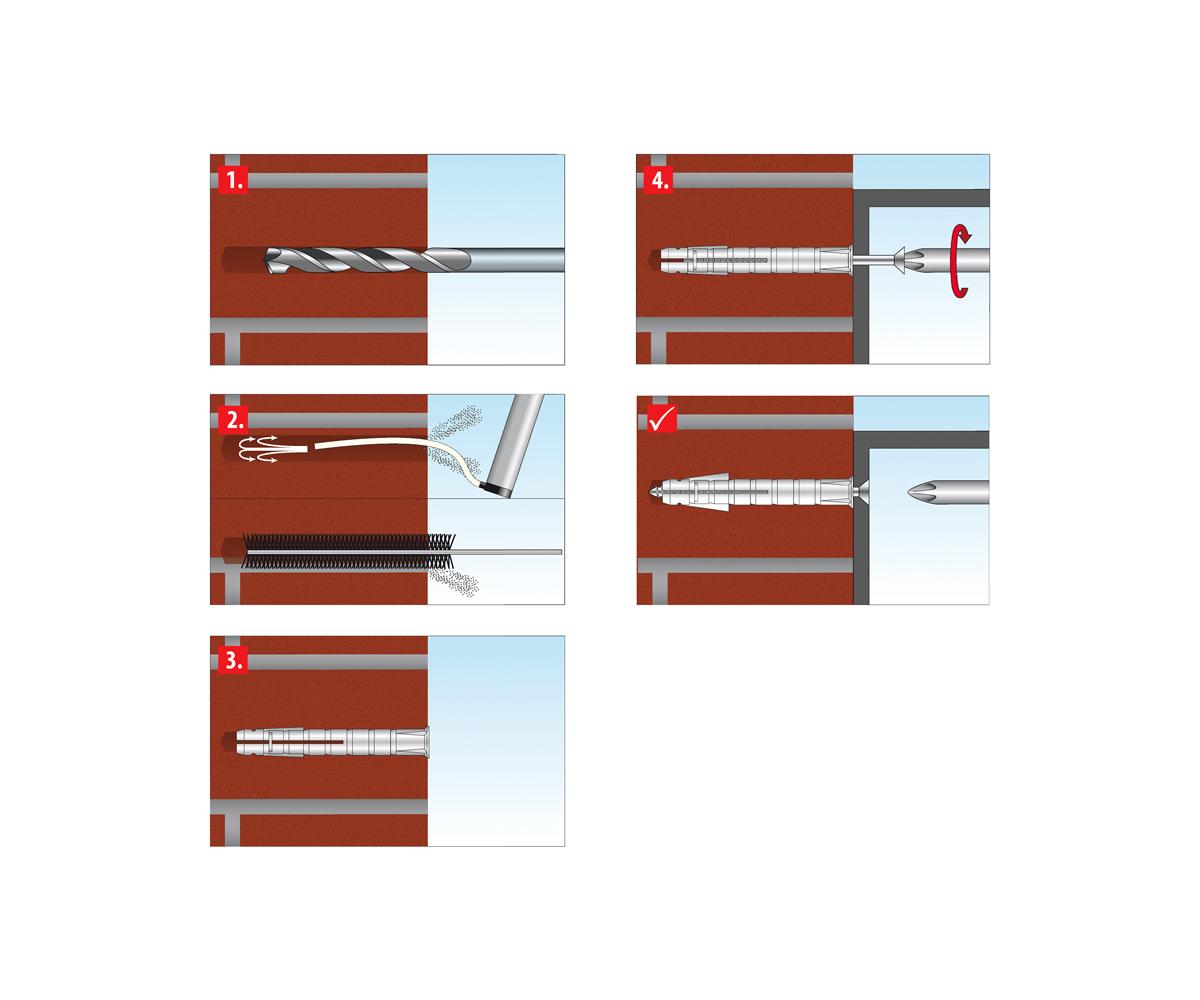

- Make a drill hole the size of the wall plug diameter
- Drill into concrete and solid brick with impact, and into perforated brick without impact
- Pre-positioned installation

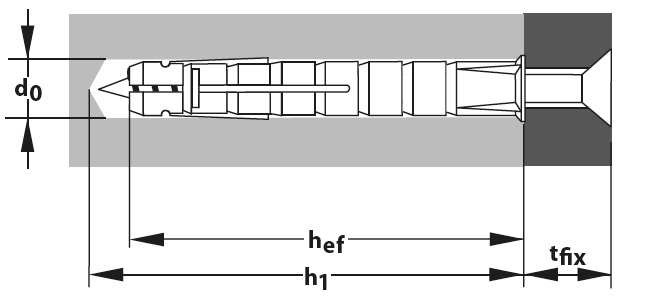

Technical data:
| Dowel diameter | 10 | [mm] | |
| Dowel length | 90 | [mm] | |
| Screw size | - | [ø mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 10 | [mm] |
| Min. drill hole depth | h1 | 100 | [mm] |
| Min. bolt penetration | hef | 90 | [mm] |
This Product was added to our catalogue on 19/06/2023.
