fischer U-clamp FUDB 100 | 10 pieces

fischer U-clamp FUBD 100

The practical pipe and cable clamp for direct fastening of cables to FUS mounting rails

Advantages

• The FUBD without soundproofing is ideal for use in industrial applications, for example, for fixing lightweight flexible supply lines in the immediate area of production machines.
• Quick adaptation to the desired outside pipe diameter by fastening the pressure pan.
• Time- and cost-saving installation without the need of accessories like threaded rods or sliding nuts.
• Locking screw with hexagonal and slot drive.
• No loss of parts due to preassembled parts.

Properties

• Material U-Strap: steel S235JRC (Material-Nr.: 1.0122) acc. to EN 10025
• Material pressure pan: steel DX51D acc. to DIN EN 10346
• Material locking screw: steel 4.6 acc. to EN 20898-1
• Zinc plating U-Strap: hot-dip galvanised, min. 35 µm acc. to DIN EN ISO 1461
• Zinc plating pressure pan: electro zinc-plated
• Locking screw: with hexagonal SW10 and slot head

Applications

• Fast installation of metal and plastic pipes, flexible plastic pipes or cables without sound insulation requirements directly to FUS installation channels
• Fits to FUS channels FUS 21, FUS 41, FUS 62, FUS 21D, FUS 41D, FUS 62D

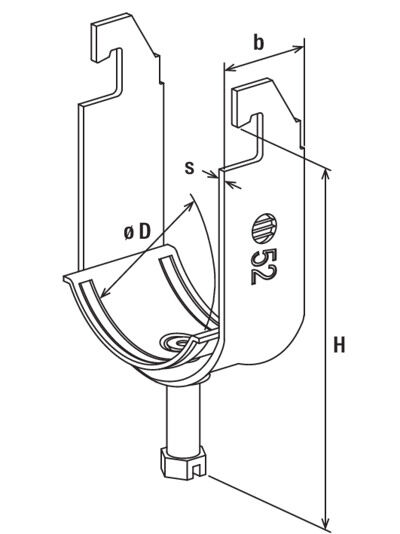

Technical Data
