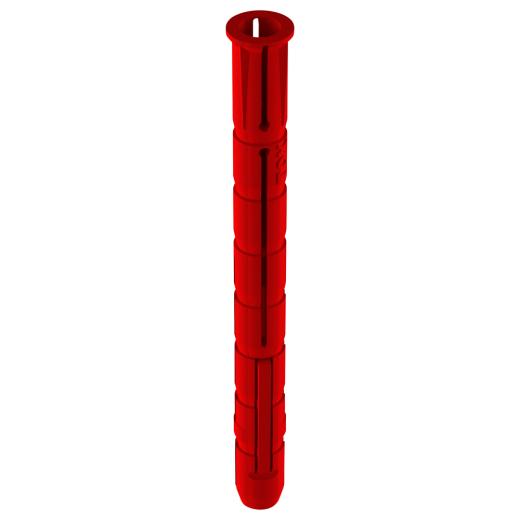

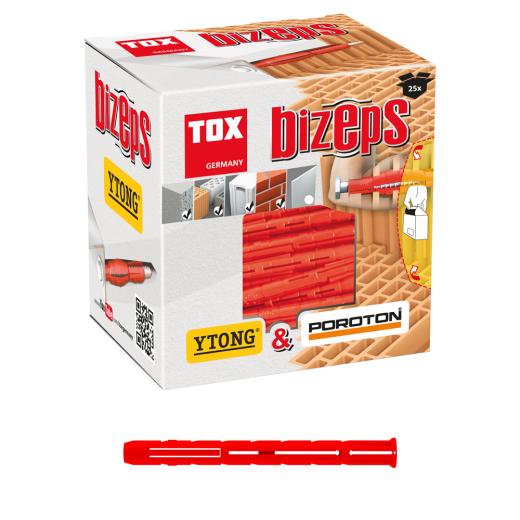

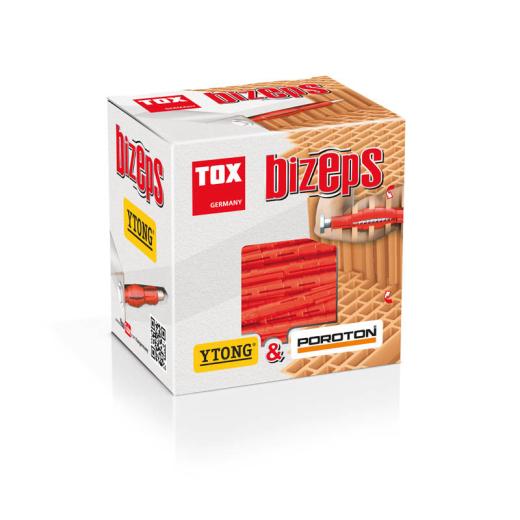

TOX Parallel expansion wall plug Bizeps 12x90 mm | 25 pieces

Product no.: T00910019

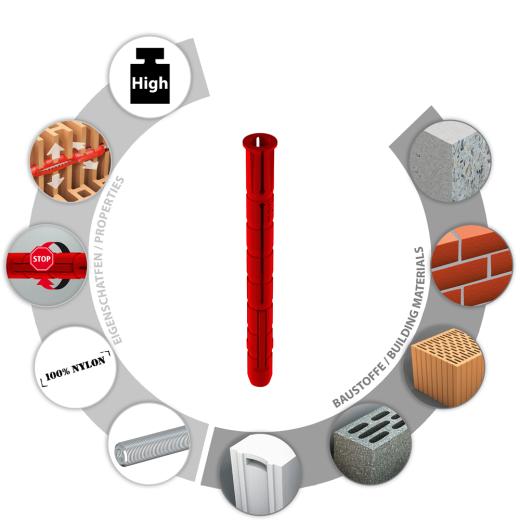

Properties

  • Ideal for perforated brick (Poroton) and porous concrete (Ytong)
  • Extremely high holding values
  • Expands in different directions
  • Rotors prevent rotation in the drill hole
  • 100% nylon
  • Long expansion area for secure anchoring
  • Also suitable for metric threaded rods

Description and field of application
  • Multiple expansion by 2-part expansion elements which are offset by 90° with moving rotors and flexible wall plug neck
  • Deep anchoring depth

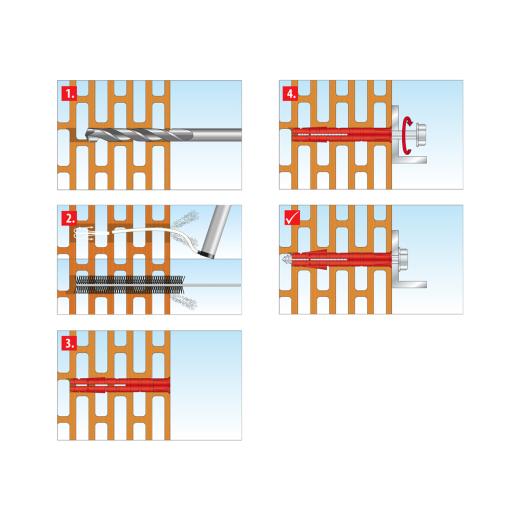

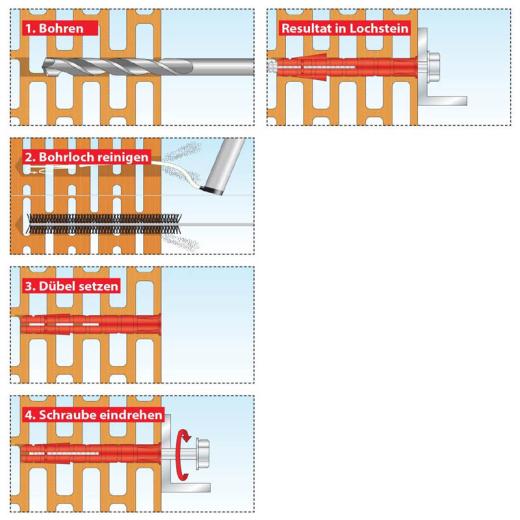

Processing and assembly
  • Make a drill hole the size of the wall plug diameter
  • Drill into perforated brick in a rotary motion without impact to prevent webs in the perforated brick from breaking away
  • Drill into concrete and solid brick with impact
  • Minimum screw length = wall plug length + fixture thickness + 5 mm
  • Pre-positioned installation
  • In solid brick with dense structure, select the smallest possible screw Ø



Technical data:

Dowel diameter 12 [mm]
Dowel length 90 [mm]
Screw size 8,0-10,0/M8 [ø mm]
Screw length ≤ 100mm + tfix [mm]
Drill hole diameter do 12 [mm]
Min. drill hole depth h1 100 [mm]
Min. bolt penetration hef 90 [mm]

Price:

17,90 EUR

19 % VAT incl. excl. Shipping costs

0,72 EUR per piece
