TOX Ceiling nail Top 6x65 mm | 100 pieces

Product no.: T08810206

Properties

• Shallow drill hole depth
• Quick and secure installation without special tools
• Knock-in stop prevents premature expansion
• Tested to fire resistance class R120
• Approved by building authorities

Description and field of application

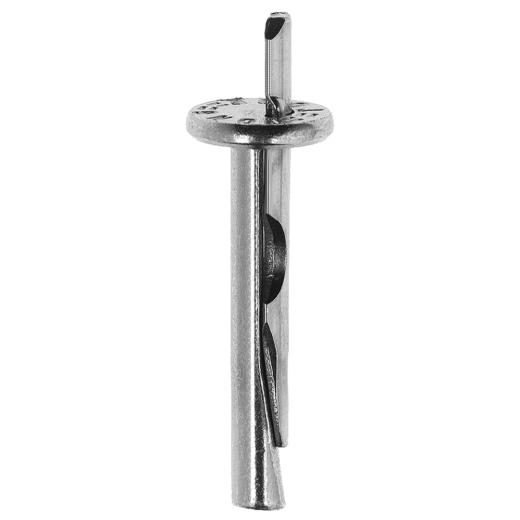

• Ready-to-fit impact anchor made of galvanised zinc-plated steel, wall plug shaft with perforated disk Ø 15 mm, thickness 2.5 mm and expansion wedge
• Tested to fire resistance class R120

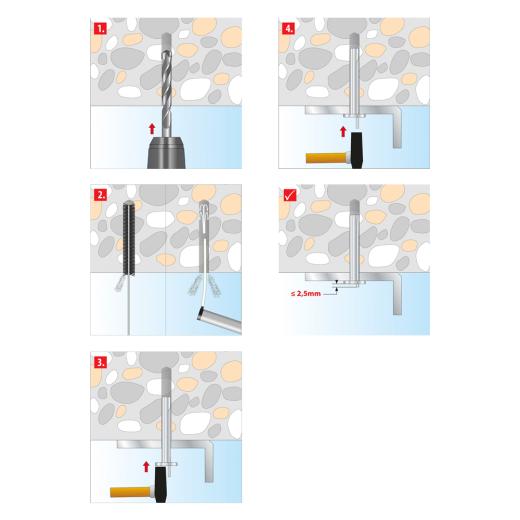

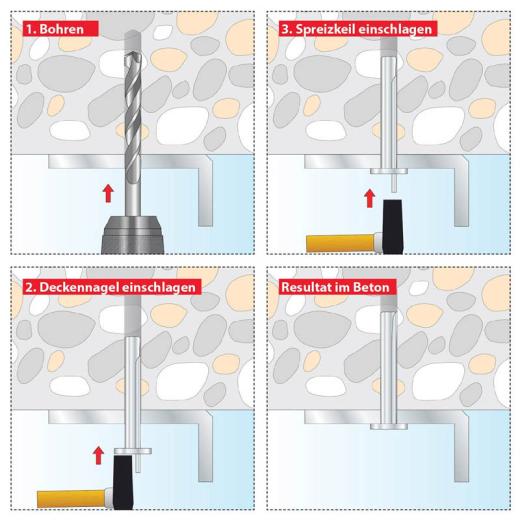

Processing and assembly

• Suitable for use only in dry interiors
• For multiple fixings, including in the tensile area
• Do not hit the expansion wedge when driving the ceiling nail into the drill hole
• Only use pressure-tight fixtures
• The wedge must not be hit in such that it bends
• Through installation

---



Technical data:

Dowel diameter	6		[mm]
Dowel length	65		[mm]
Screw size	73170080		[ø mm]
Screw length	-		[mm]
Drill hole diameter	do	6	[mm]
Min. drill hole depth	h1	40	[mm]
Min. bolt penetration	hef	32	[mm]

Price:

79,90 EUR

19 % VAT incl. excl. Shipping costs

0,80 EUR per piece
