fischer Insulation Holder Termofix B 180 | 100 pieces
Product no.: F008696
The fischer Termofix B is a corrosion-protected screw anchor for fastening pressure-resistant insulation boards in sheet metal up to 1.5 mm thick. The insulation anchor consists of a holding plate made of polypropylene and a pre-mounted drilling screw. The screw is protected against corrosion with a Delta-Seal coating, providing long-term security. The Termofix B is installed with a cordless drill in through-hole installation without pre-drilling. The pre-mounted screw saves time. The screw head is sealed against heat loss with the closure ball. The flexible head compensates for thermally induced tensions and prevents damage.
Advantages
- The pre-mounted screw shortens processing time.
- High corrosion protection of the screw due to the Delta-Seal coating. This means security over years.
- The closure ball creates an air column above the screw head. This reduces transmission heat losses.
- The flexible head compensates for thermally induced tensions and prevents damage.
- Can be combined with the insulation washers DT 90, DT 110, DT 140 for very soft insulation materials.
Applications

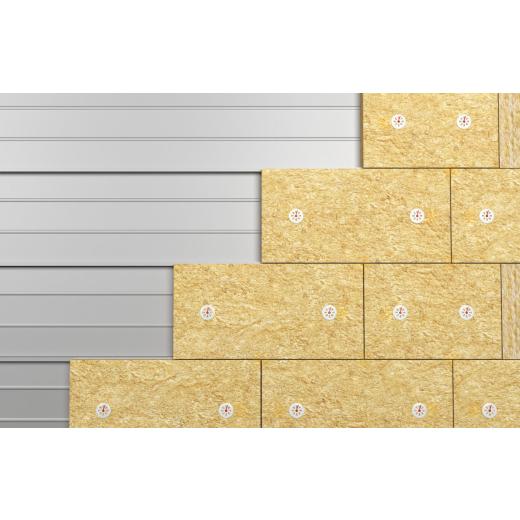

- Fastening of ETICS insulation boards on sheet metal substrates
- Surface-flush installation in ETICS insulation materials, e.g., polystyrene
Building Materials
- Sheet metal / trapezoidal sheet metal up to 1.5 mm
Product Features:
| Drive | PH2 |
| Drill end diameter | 8 [mm] |
| Anchor length | 180 [mm] |
| Mounting type | Screw anchor |
| Max. Usable length | 160 [mm] |
| Max. Thickness of the component | 160 [mm] |
| Min. Anchorage depth | 20 [mm] |
| Screw length | 170 [mm] |
| Plate-Ø | 60 [mm] |
Price:
215,90 EUR
19 % VAT incl. excl. Shipping costs
2,16 EUR per piece
